Other BESS solutions are cumbersome, involve additional equipment, are volatile and cost can easily triple at installation due to poor system design.
10 GB Series

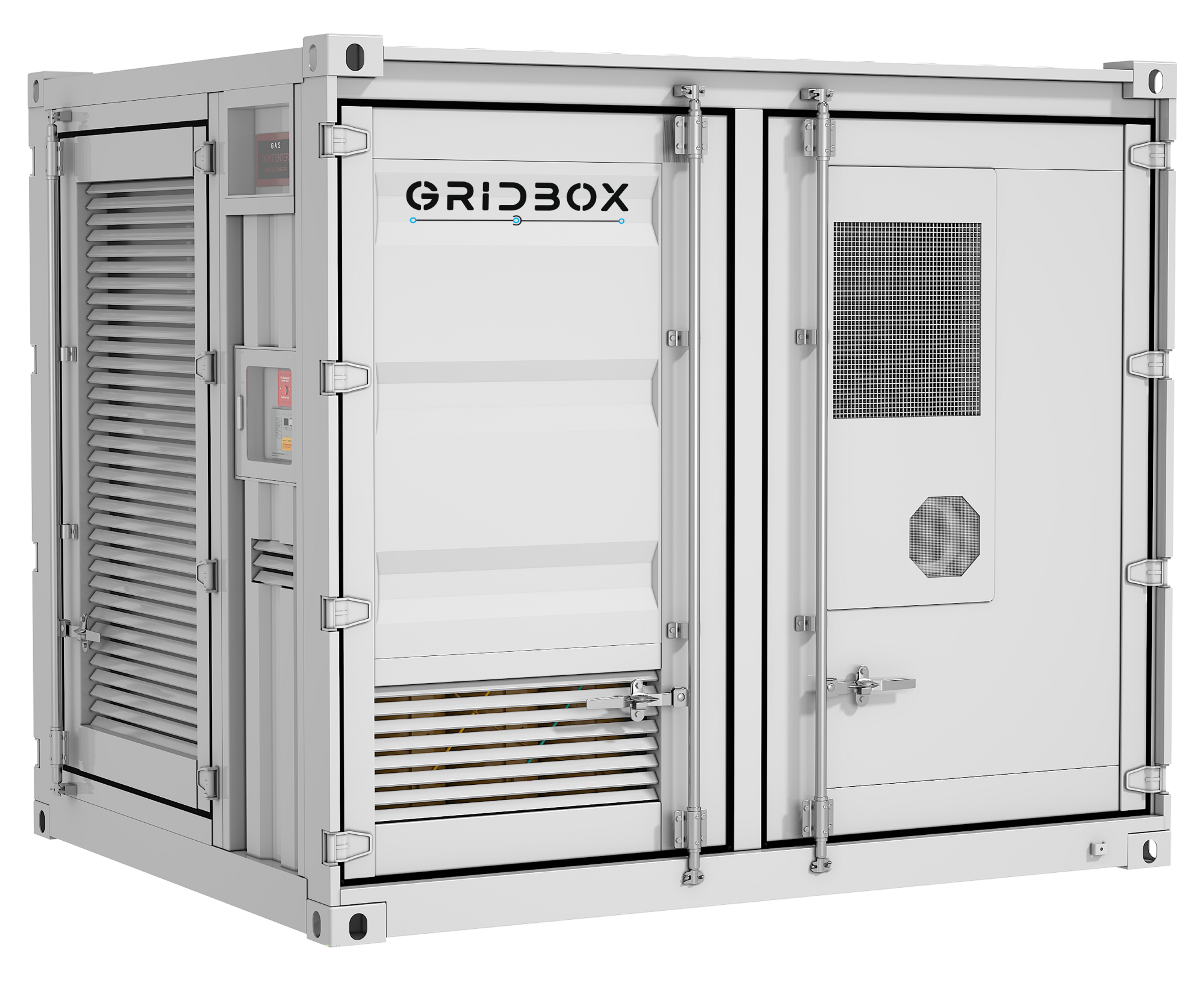

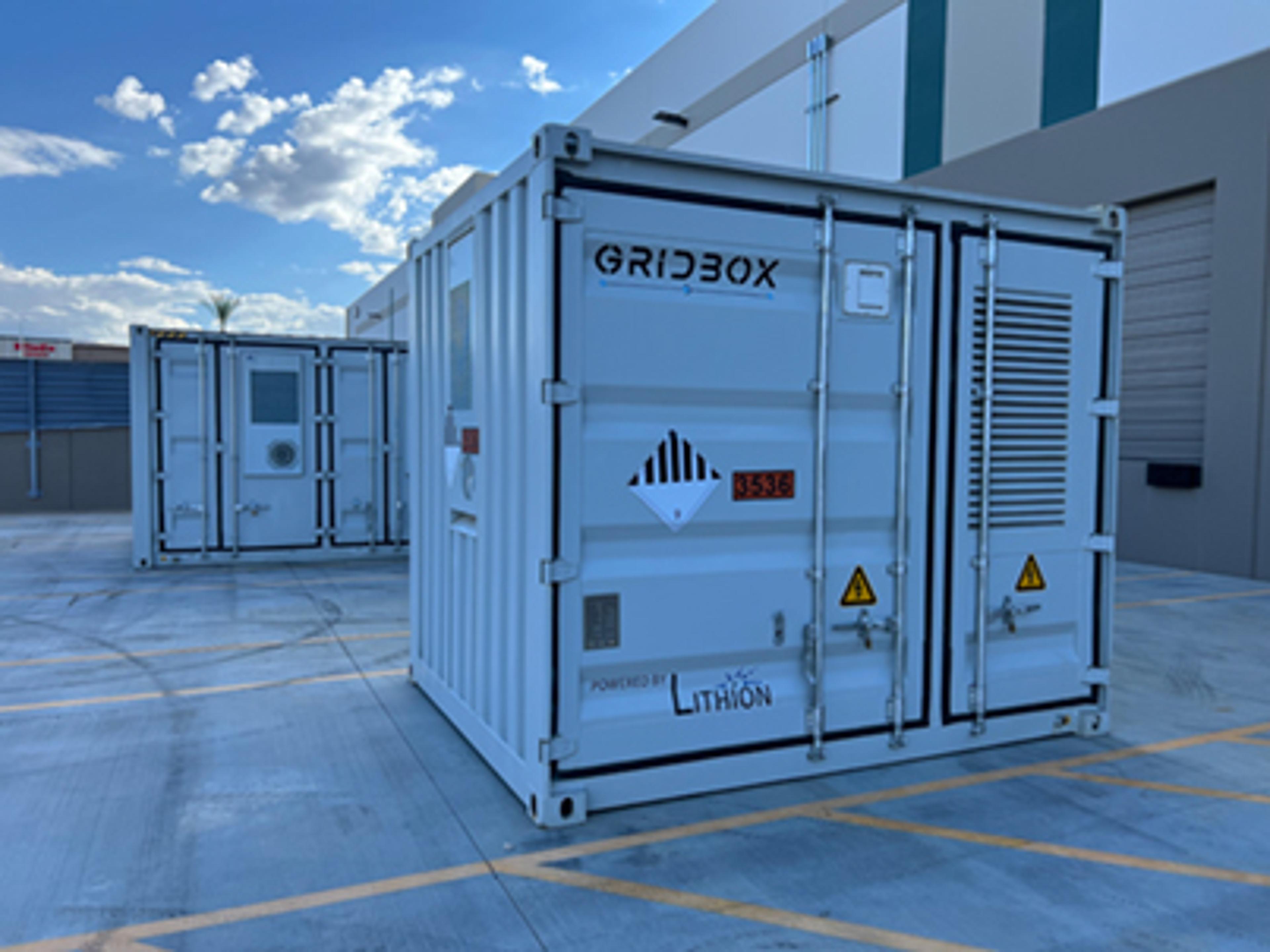

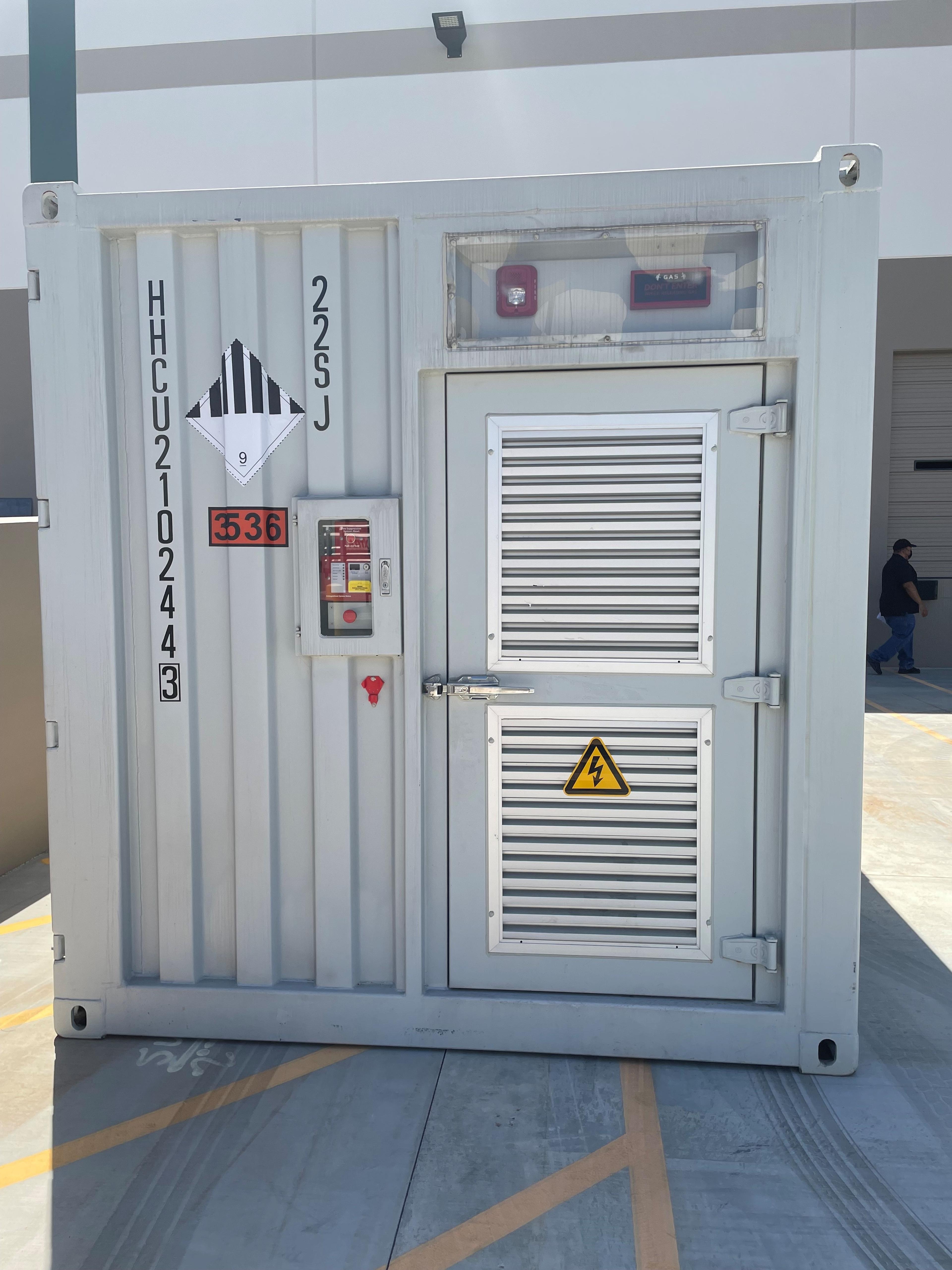

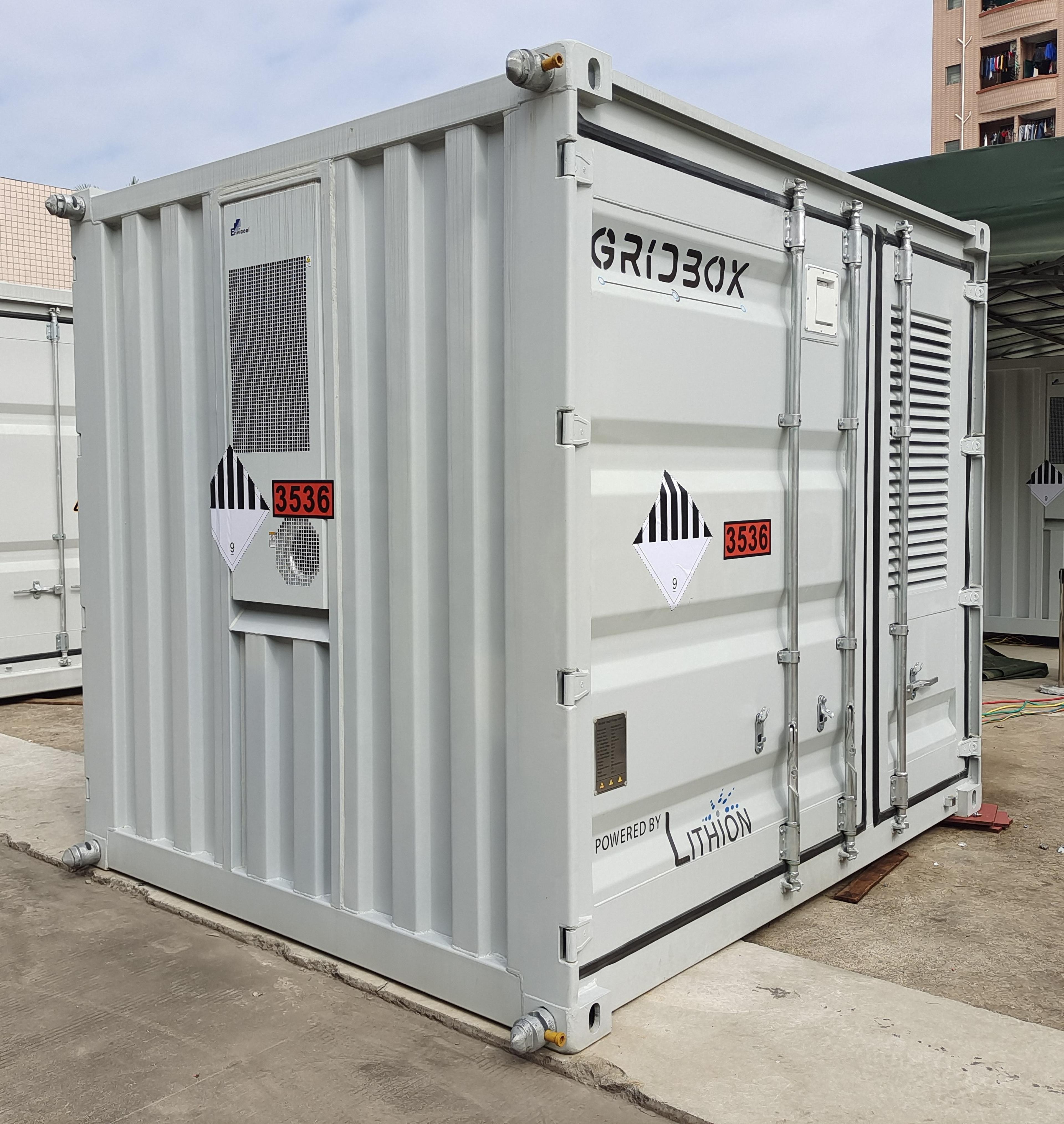

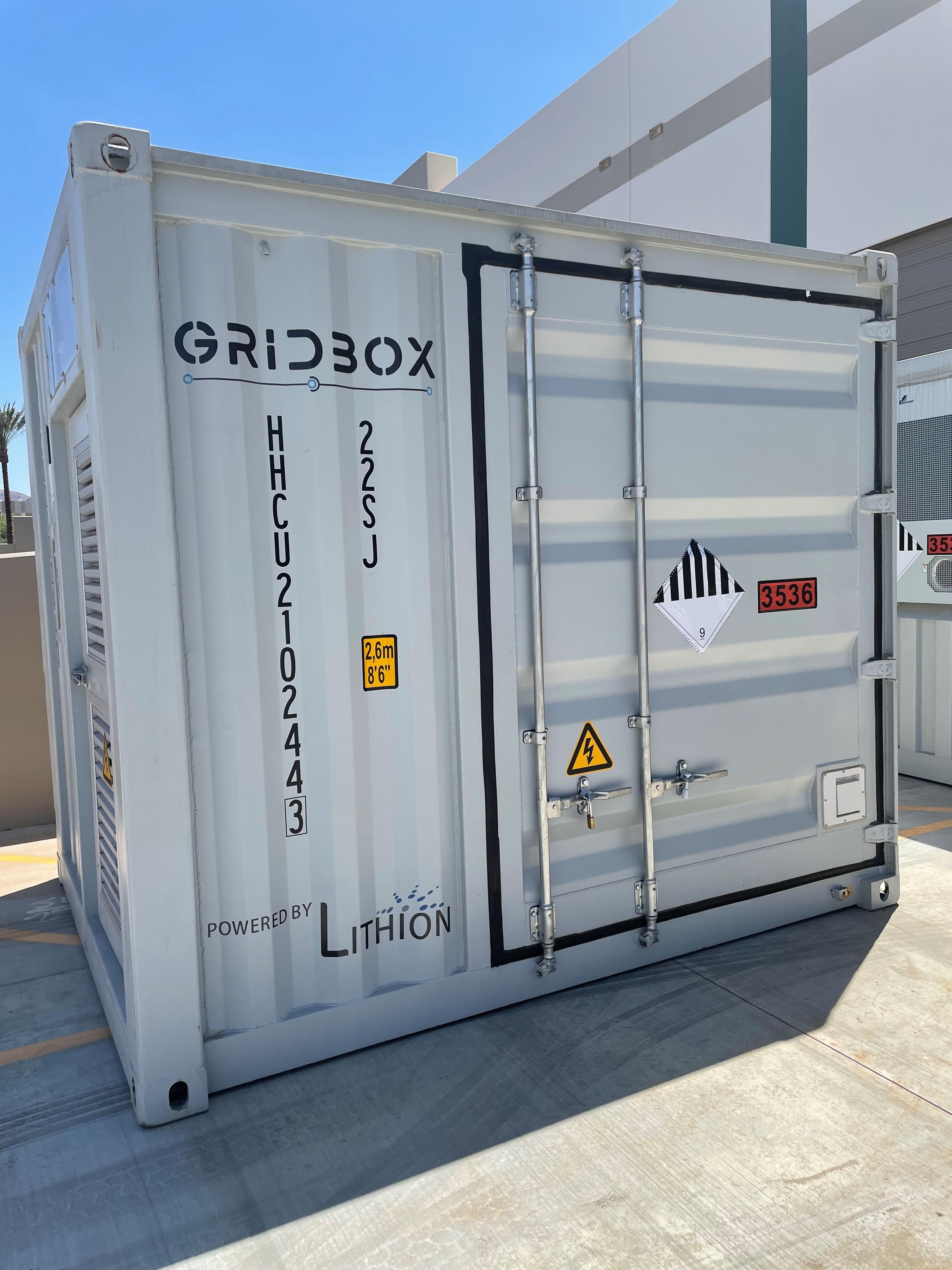

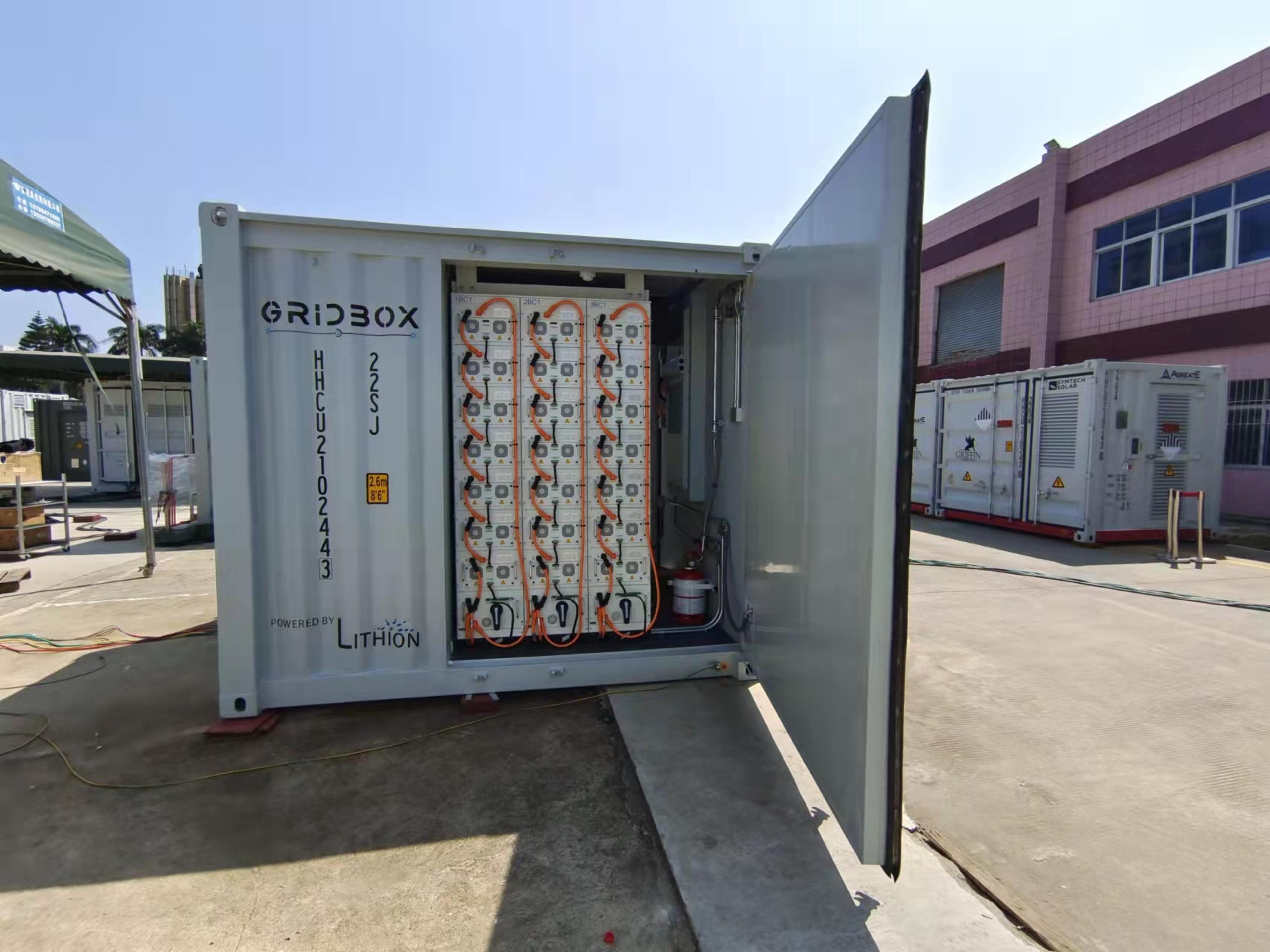

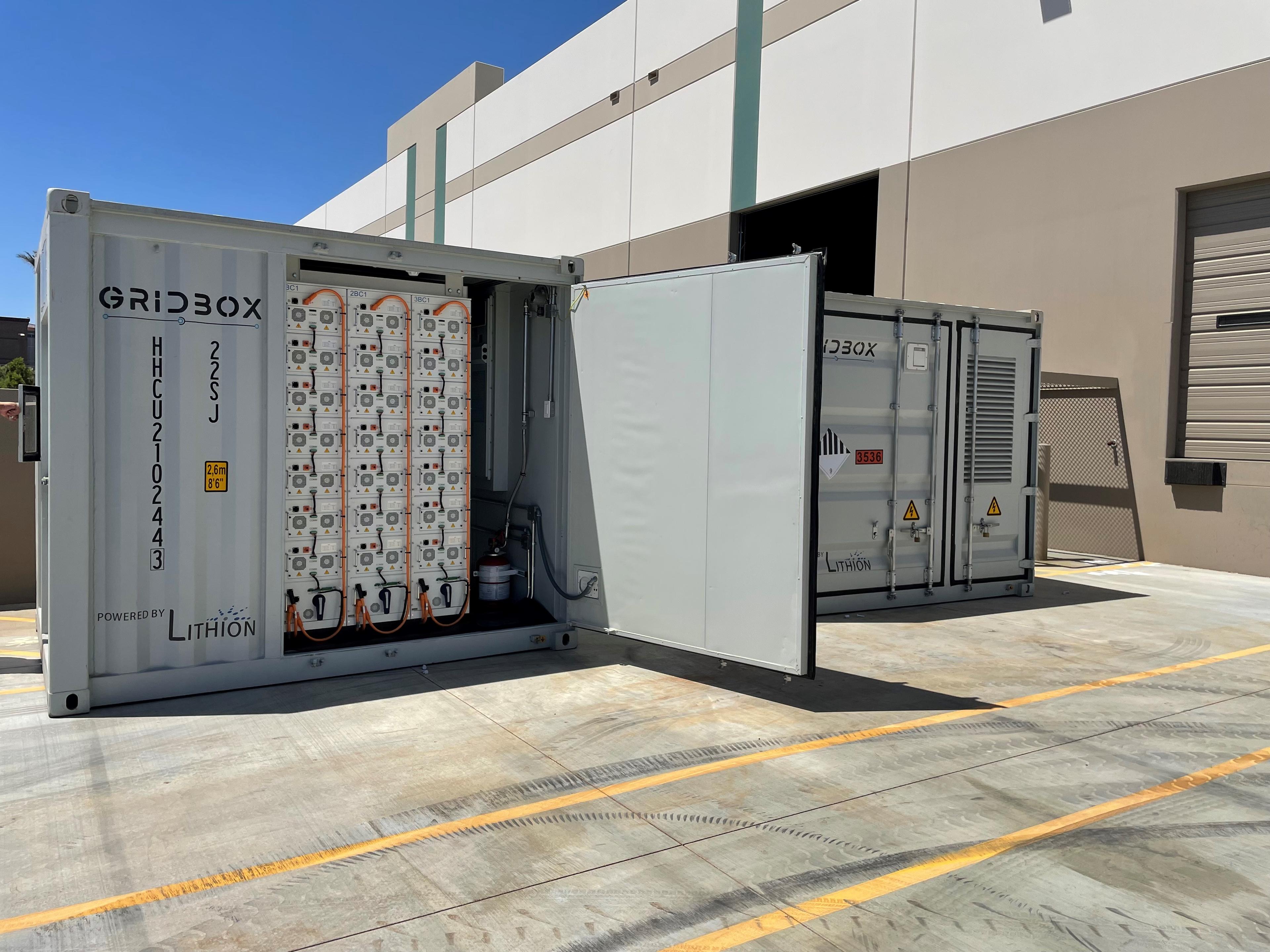

Gridbox’s 10GB Battery Energy Storage System (BESS) is a high-energy density product specifically designed for Utility, Commercial & Industrial applications. The 10GB BESS Solution includes LFP Prismatic Modules Strings, bi-directional inverter, isolation transformer, fire detection/suppression system, thermal management system, overcurrent protection, and our Gridbox Control System. The purpose-built enclosure's environmental control system increases service life of the battery system. Intelligent battery management technology is leveraged to improve the safety of the system and its lifespan.
Output: up to 200 kW
Surge: up to 400 kW (7 sec)
Capacity: up to 600 kWh
Proprietary Thermal Management System down to the cell level.
208V & 480V 3-phase capable
Purpose built enclosure
features
Chemistry: Under Lithion we helped, pioneer the manufacturing process that led to the commercialization of Lithium Iron Phosphate (LFP) technologies. Lithion’s 20 plus years of experience using LFP chemistry allows the GridBox product line to leverage Lithion’s expertise by providing inherently safe BESS technology.

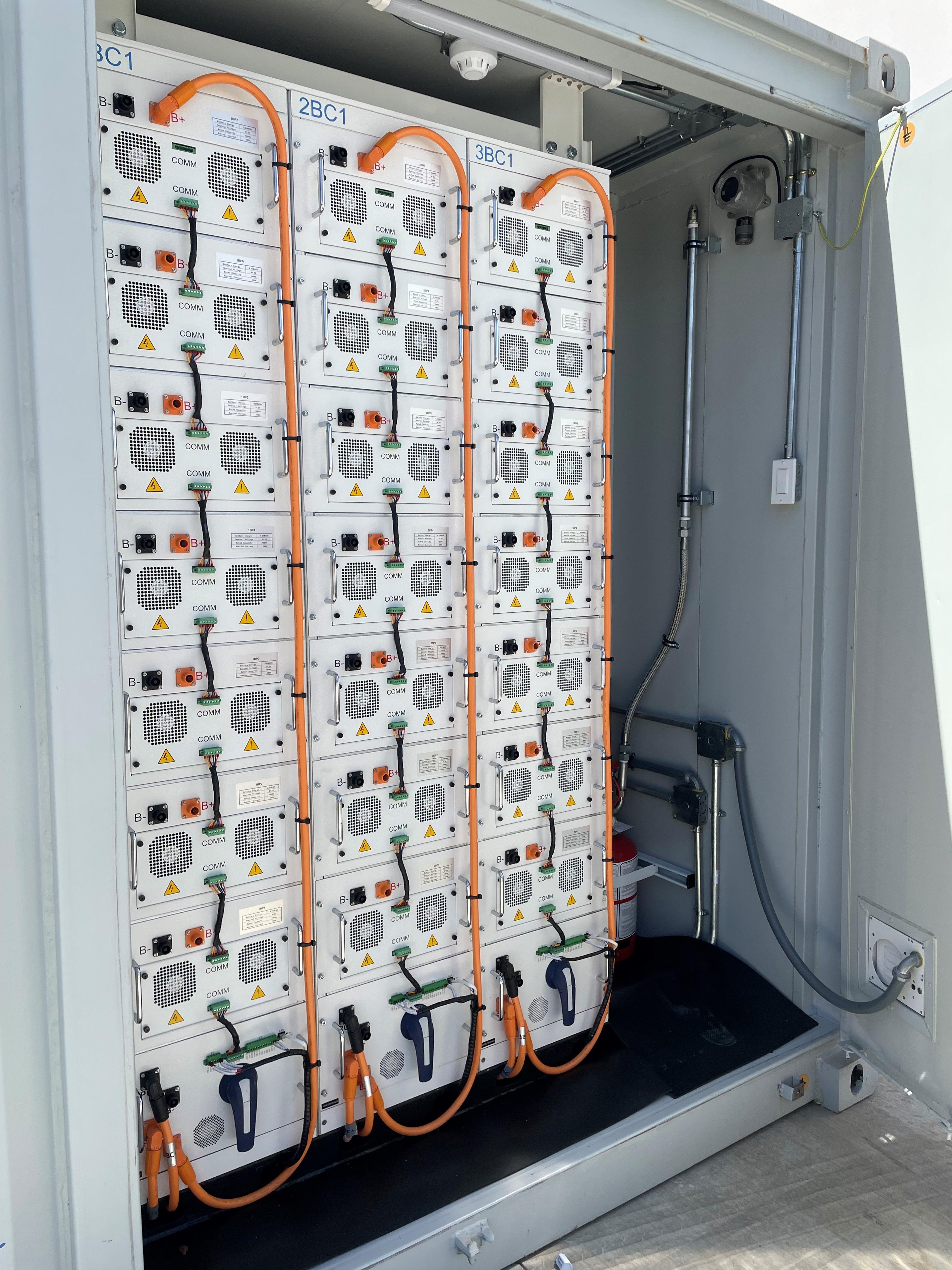

- LFP Microgrid in a Box
- Easy installation
- Isolation Transformer not required
- Optimize BESS without an external master EMS.
- Maximum flexibility: Connect renewables and/or gensets directly to the 10GB.
- Maximize your DER assets in conjunction with your DERM’s package
- Blackstart in off-grid mode.
- Grid-forming and Grid Following Capable
- Seamless transfer to and from on-grid and off-grid
